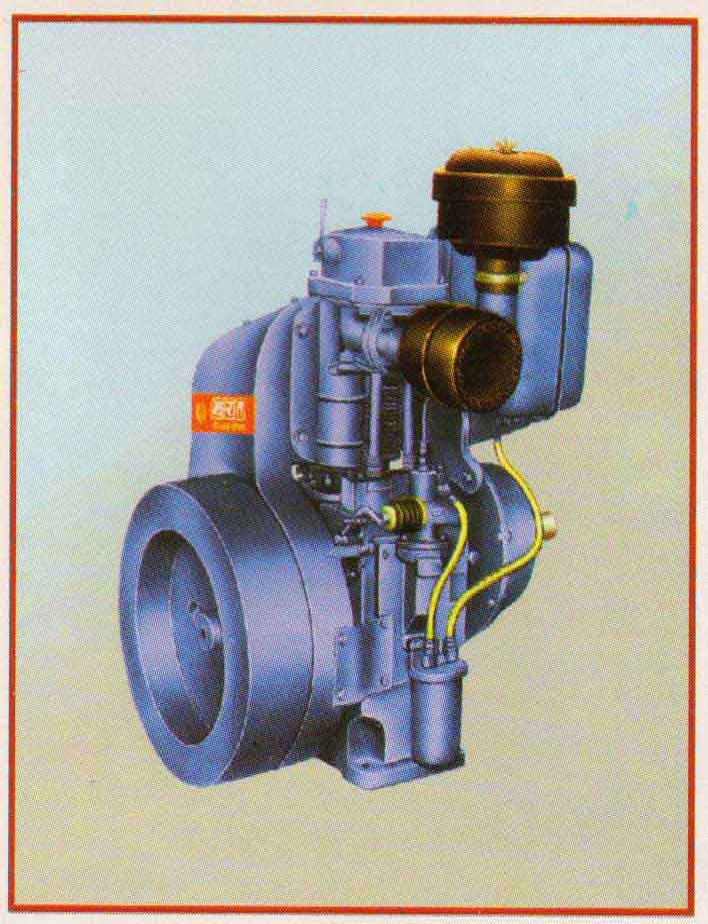

4 H.P

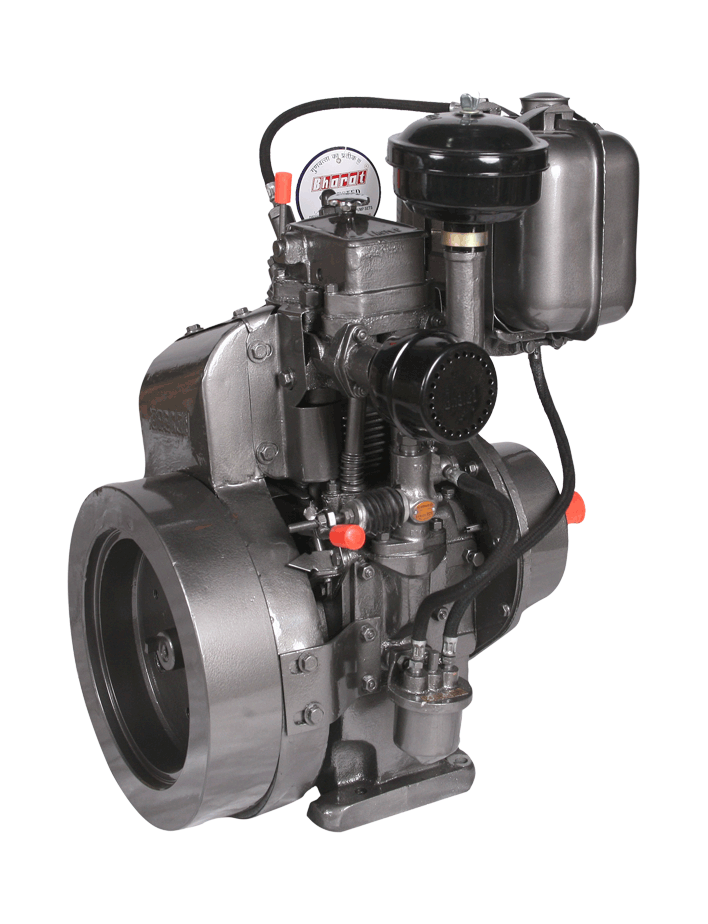

 5 H.P

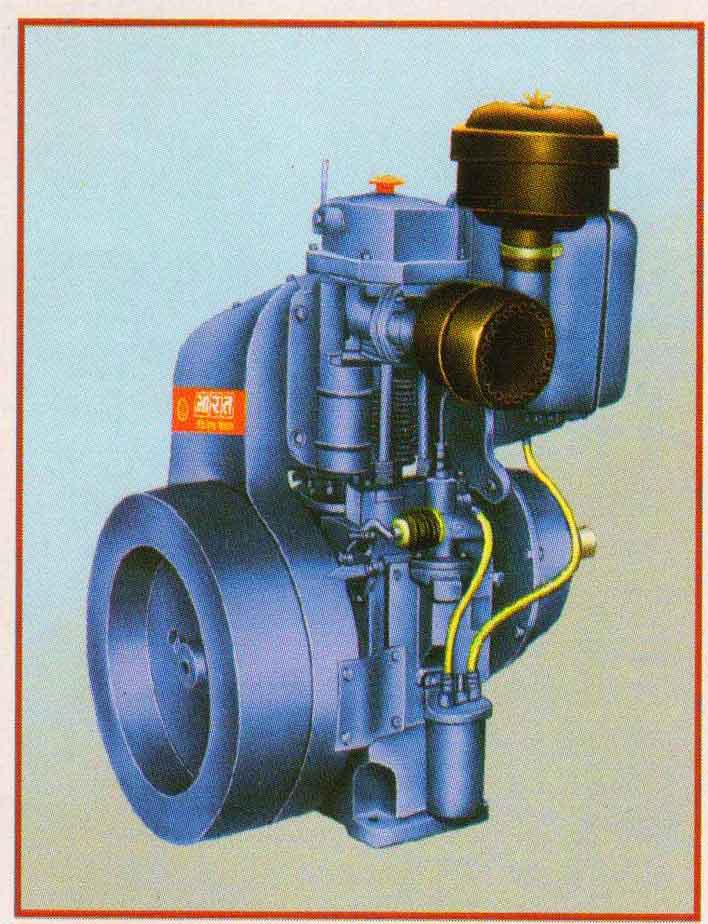

8 H.P

10 H.P

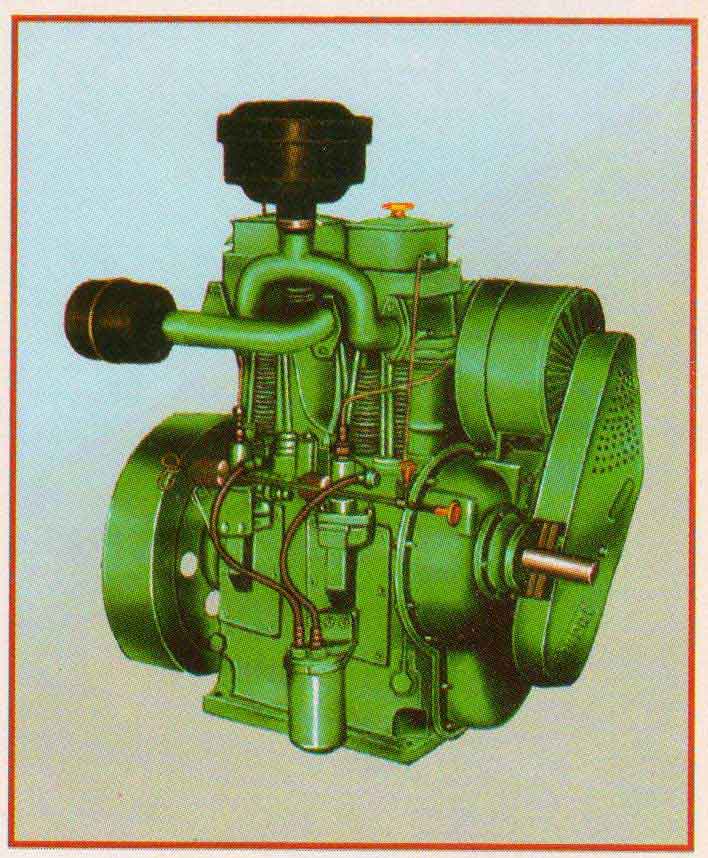

18 H.P

HORSE POWER

4

5

8

10

18

NO. 0F CYLINDER

1

1

1

1

2

SPEED(rpm)

1500

1500

1500

1500

1500

BORE(mm)

80

85

95

102

102

STORKE(mm)

80

80

110

110

110

CUBIC CAPACITY (in ltr.)

0.402

0.454

0.779

0.898

1.790

SPECIFIC FUEL CONSUMPTION

(A) gms /bhp/hr. AT FULL LOAD

(B) gms /kw/hr. AT FULL LOAD

185

184.7

185

185

185

251

251

251

251

251

LUBRICATION OIL CONSUMPTION

(A) gms / bhp/hr. AT FULL LOAD (max)

(B) gms /kw/hr. AT FULL LOAD

3

3

3

3

3

4

4

4

4

4

FOUNDATION BOLT SPACING(mm)

224.6x120

224.6x120

292x140

292x140

292x295

COMPRESSION RATIO

18:1

18:1

16.5:1

16.5:1

16.5:1

RATED OUTPUT KW (BHP) AS PER IS:10001OR BS:55 14 OR ISO:3046

2.95

3.68

5.9

7.36

13.25

VOLUME-M3

0.2541

0.278

0.4769

0.4769

0.6110

CRANK SHAFT CENTRE HIGHT (mm)

152.4

152.4

203.2

203.2

203.2

WEIGHT OF BARE ENGINE WITH FLYWHEEL (IN kgs.)

90

105

170

178

278

WEIGHT OF PACKED ENGINE (in kgs.)

140

135

230

252

372

PACKING SIZE LxWxH (cm)

66x55x70

66x55x70

81x64x92

81x64x92

90x73x93

ISI mark or not?

No

No

No

No

No
